User Manual for PreSonus Studio 2|4 USB Audio Interface Click to enlarge the picture
Contents of the user manual for the PreSonus Studio 2|4 USB Audio Interface
- Product category: Audio Interfaces & Systems PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Audio Interfaces & Systems
 |
User manual for the PreSonus Studio 2|4 USB Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

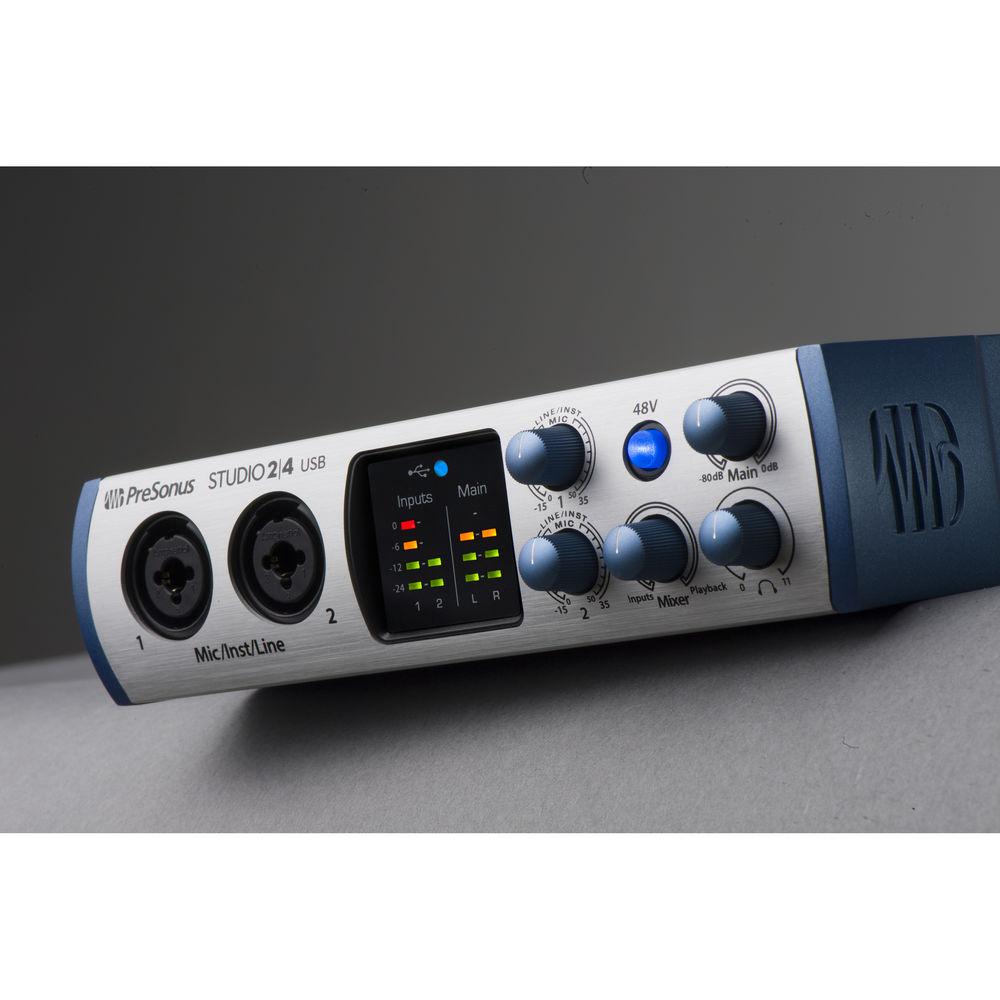

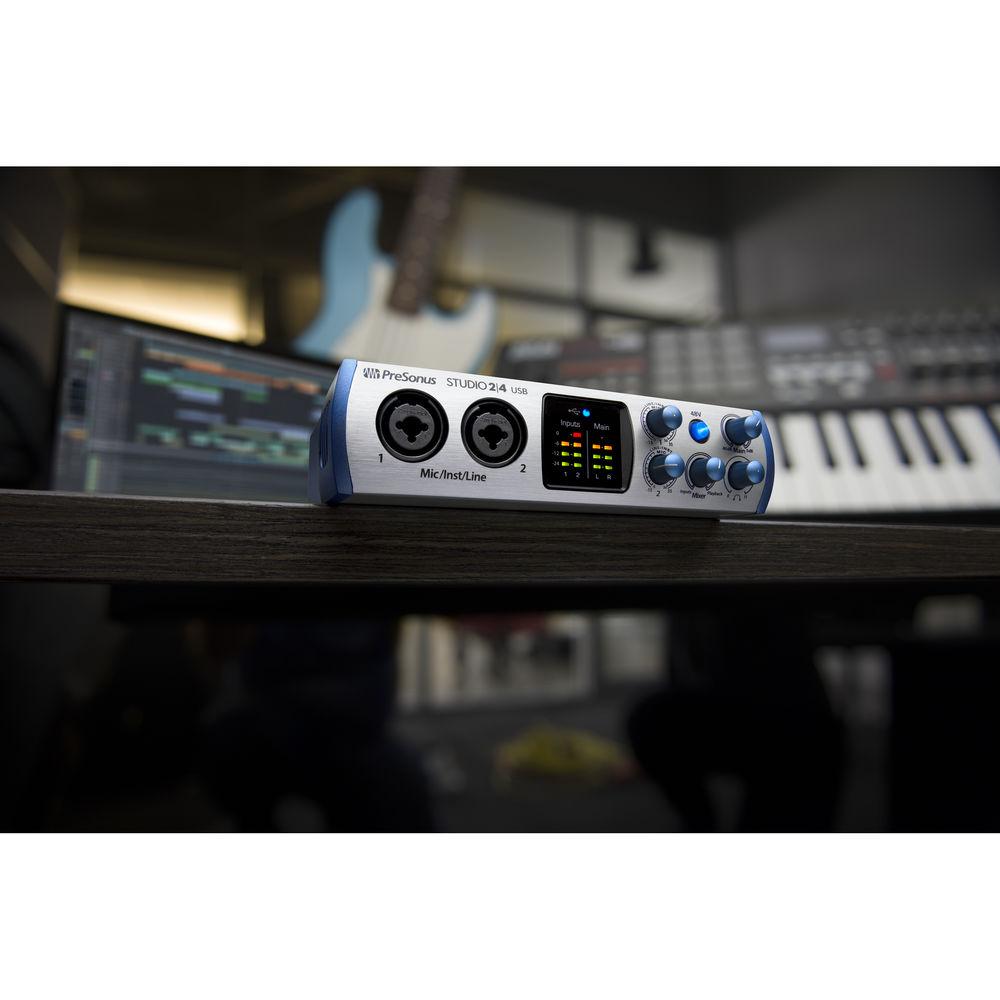

Product description New PreSonus Interfaces and Controllers for Mobile & Project Studios Read More vveetqtfaxbwfvfvbucxsdtbferd The PreSonus Studio 2|4 is compact, bus-powered USB audio interface designed to deliver high-resolution performance for musicians, songwriters, and podcasters in home studios and mobile recording setups. Its USB 2.0 Type-C interface supports two channels in and out at up to 24-bit / 192 kHz resolution. The front-panel features two XLR-1/4" combo inputs with XMAX-L solid-state preamps and selectable phantom power, perfect for hooking up your microphones or instruments.Utilize the rear-panel 1/4" TRS line outputs and 1/4" stereo headphone jack to connect monitors and headphones: separate volume controls are provided for the main and headphone outputs. MIDI 5-pin ports facilitate easy integration of external keyboards, sound modules, and drum machines. The Studio 2|4 is Mac and Windows compatible and includes the Studio One Artist DAW software, the Studio Magic Plug-In Suite, and two USB cables. - Designed for home recording, mobile musicians, guitarists, podcasters, and live streaming
- Convenient bus powering via USB Type-C connection

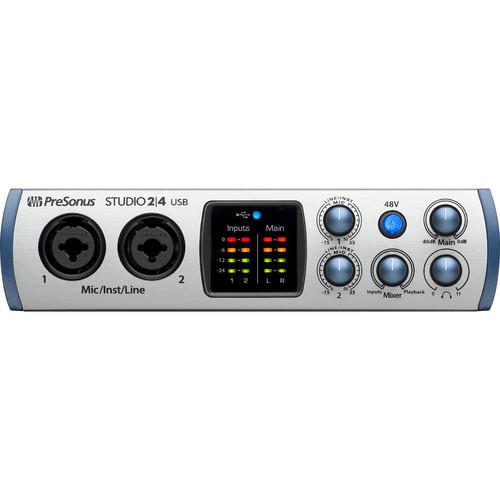

- Two front-panel XLR-1/4" combo inputs with PreSonus XMAX-L Class-A, solid-state mic preamps and selectable phantom power

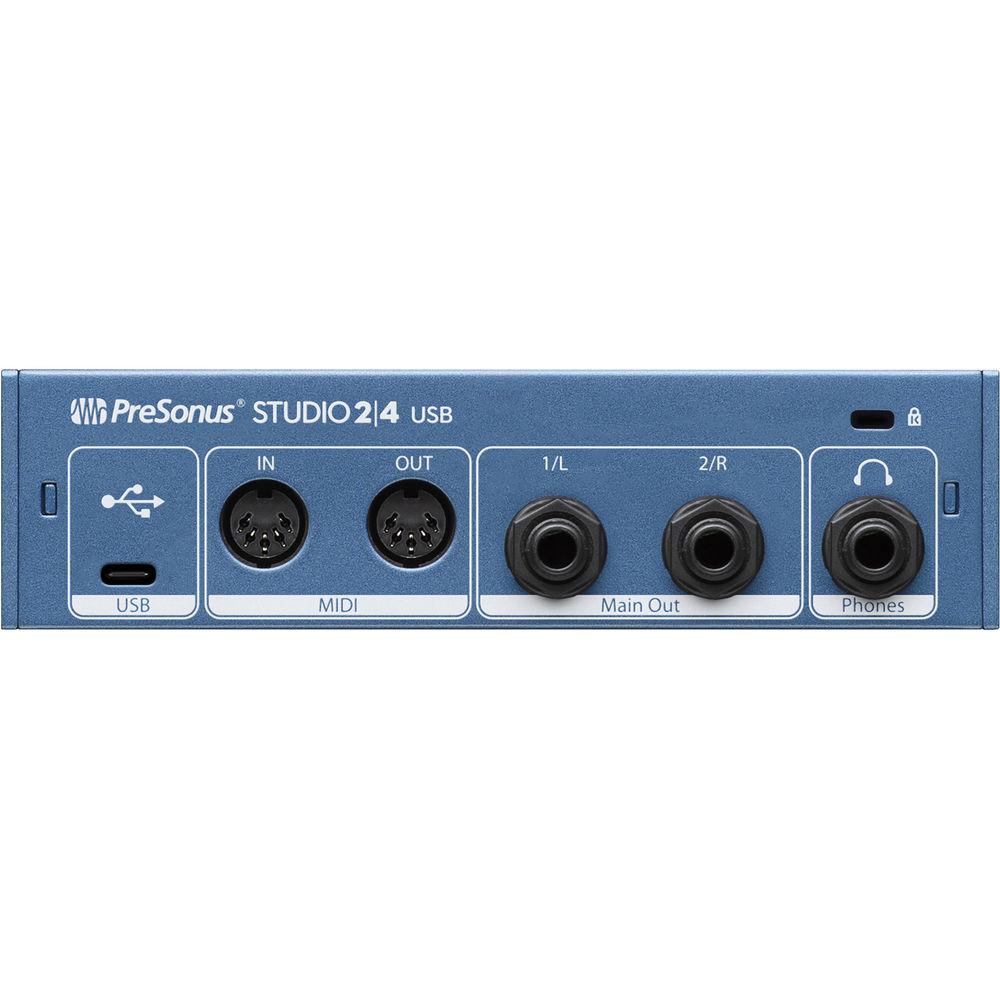

- Two rear-panel 1/4" line outputs for connection to active monitors
- Rear-panel 1/4" TRS stereo headphone output
- Independent volume controls for headphone and main outputs
- Mixer knob for low-latency direct input monitoring
- MIDI I/O for connectivity with traditional sound modules and synthesizers
- 4-segment, ladder-style LED meters for inputs and main outputs
- Kensington lock security hole
- Rugged construction with metal chassis and knobs
- Includes one USB Type-C cable, a USB Type-C to USB Type-A cable, Studio One Artist DAW software, and the Studio Magic Plug-In Suite
UPC: 673454006845 In the Box PreSonus Studio 2|4 USB Audio Interface USB Type-C Cable USB Type-C to USB Type-A Cable Limited 1-Year Warranty User Manual PDF 6.8mbvveetqtfaxbwfvfvbucxsdtbferd Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Studio 2|4 USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus Studio 2|4 Specs | System Requirements | macOS 10.8.5 (64-bit) or later
Intel i-Series 2 GHz multicore processor (or AMD equivalent) or faster
4 GB RAM (8 GB or more recommended)
32 GB free space on hard disk
USB 2.0 port
PreSonus Universal Control 2.0 or later
1366 x 768 screen resolution (high-DPI monitor recommended)
Multitouch-enabled monitor required for touch operation
Windows 7 SP1 plus platform update, Windows 8.1, or Windows 10 (all x64/x86)
Intel i-Series 2 GHz multicore processor (or AMD equivalent) or faster
4 GB RAM (8 GB or more recommended)
32 GB free space on hard disk
USB 2.0 port
PreSonus Universal Control 2.0 or later
1366 x 768 screen resolution (high-DPI monitor recommended)
Multitouch-enabled monitor required for touch operation | | Inputs | 2 x XLR-1/4" combo jacks | | Outputs | 2 x 1/4" TRS main outputs
1 x 1/4" TRS headphone output | | MIDI | 1 x MIDI 5-pin input
1 x MIDI 5-pin output | | Supported Resolution | Up to 24-bit / 192 kHz | | Gain Range | Mic and Instrument Inputs: 50 dB | | Frequency Response | Microphone Inputs: 20 Hz to 20 kHz (±0.3 dBu, unity gain, unweighted)
Instrument Inputs: 20 Hz to 20 kHz (±0.1 dBu, unity gain, unweighted)
Main Outputs: 20 Hz to 20 kHz (±0.3 dBu, unity gain, unweighted)
Headphone Output: 20 Hz to 20 kHz (±0.5 dBu, unity gain, unweighted) | | Dynamic Range | ADC/DAC: 108 dB
Mic Inputs: 106 dB (A-weighted, minimum gain)
Instrument Inputs: 105 dB (A-weighted, unity gain)
Main Outputs: 104 dB (unity gain, unweighted)
Headphone Output: 83 dB (A-weighted, 56-Ohm load) | | Maximum Level | Microphone Inputs: +10 dBu (±0.5 dBu, minimum gain)
Instrument Inputs: +19 dBu (minimum gain)
Main Outputs: +10 dBu (1 kHz, unity gain, balanced) | | Maximum Power | Headphone Output: 47 mW per channel at 56 Ohms | | THD + N | Microphone Inputs: 0.004% (1 kHz, -1 dBFS, minimum gain)
Instrument Inputs: 0.002% (1 kHz, minimum gain)
Main Outputs: 0.001% (1 kHz, -1 dBFS, unity gain)
Headphone Outputs: 0.01% (1 kHz, 0 dBFS, loaded) | | EIN | Microphone Inputs: -126 dBu (A-weighted, 150 Ohms, maximum gain) | | Impedance | Microphone Inputs: 1.4 kOhms
Instrument Inputs: 750 kOhms
Headphone Output: 32 to 300 Ohms | | Phantom Power | +48 VDC (selectable) | | Power Requirement | Power via USB Type-C connection | | Construction Material | Metal | | Dimensions (H x W x D) | 1.8 x 7 x 5.5" / 44 x 180 x 144 mm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 7.9 x 7.2 x 2.0" |
